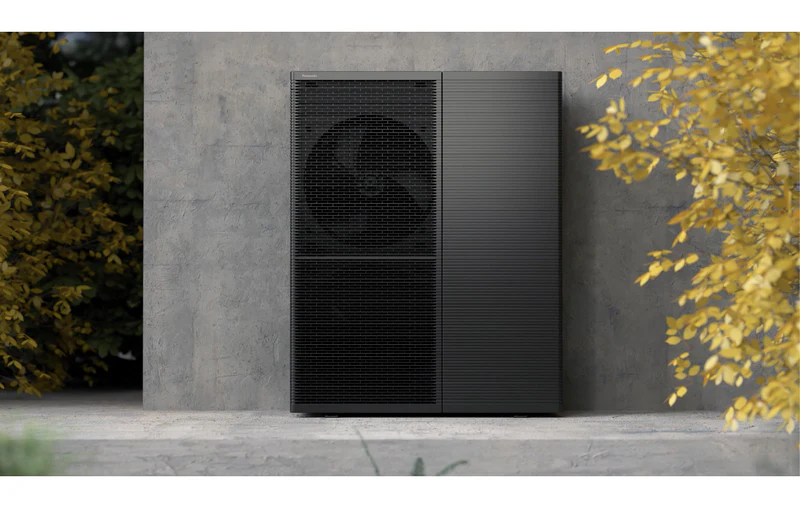

Panasonic Aquarea Generation M. The top Heat Pumps with natural refrigerant R290
The Aquarea Generation M series comes in the T-CAP version and is Panasonic's most modern offering for heating and DHW generation applications, offering:
- Maximum efficiency up to A+++ / A++
- Ability to operate in outdoor temperatures up to -28°C
- Water outlet temperature up to 75°C without using electrical resistance
- Performance up to 65°C in the DHW using only the compressor
- Ideal for boiler replacement, renovations and new constructions

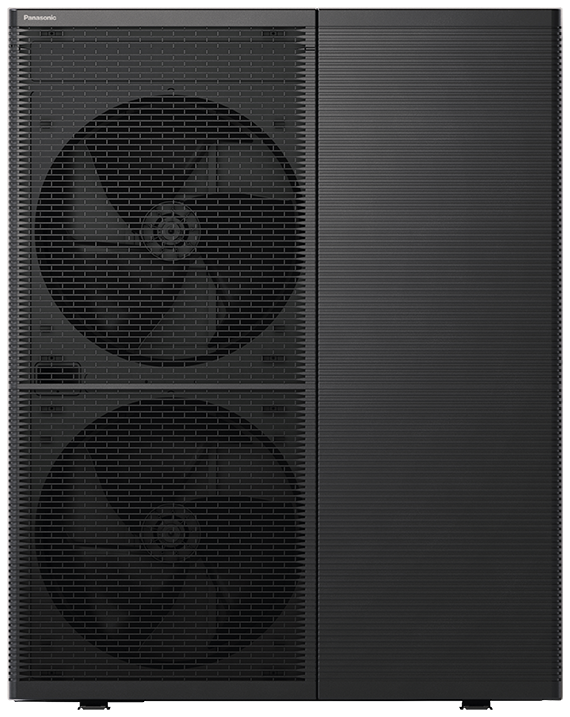

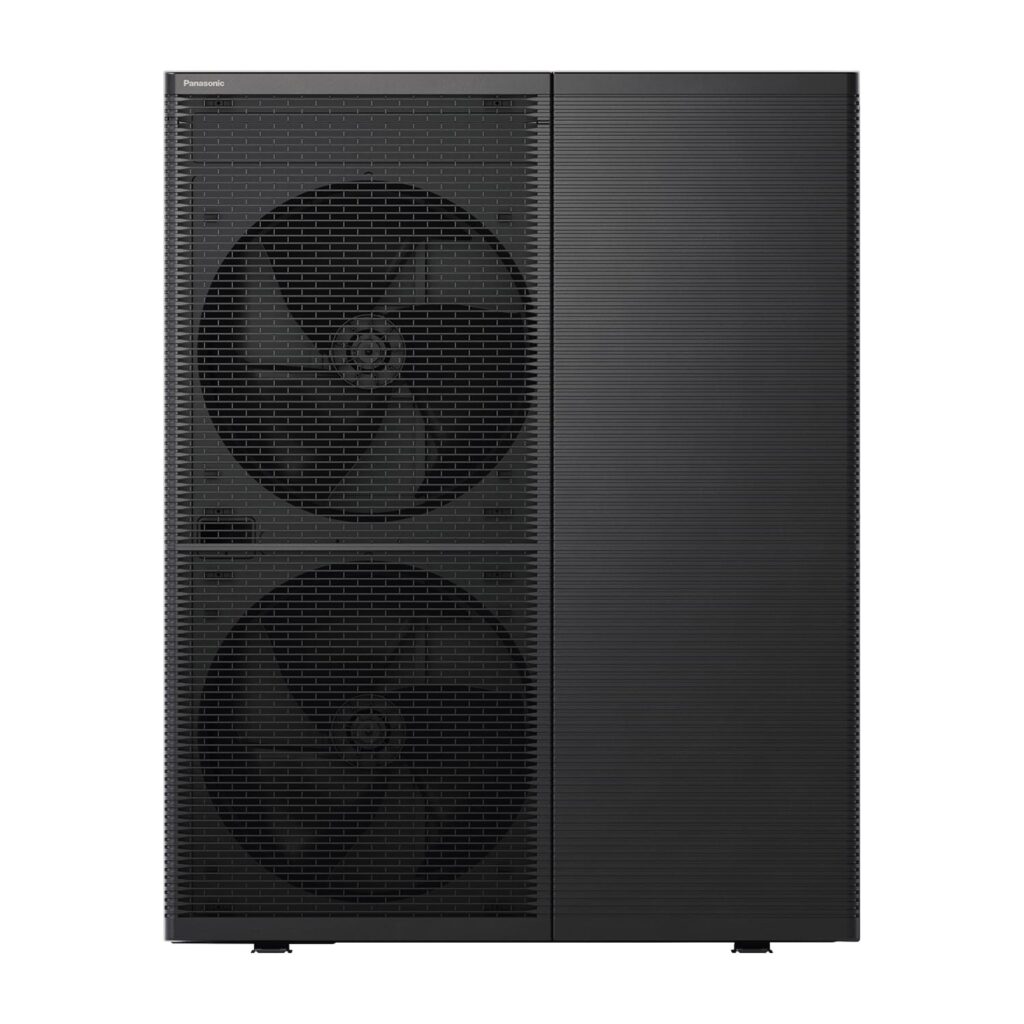

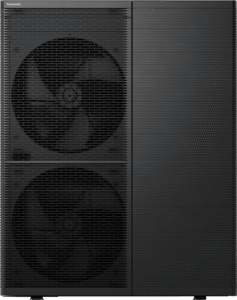

Aquarea T-CAP R290 Monobloc Generation M. Technical characteristics
WH-WXG09ME5
| FEATURE | PRICE |
|---|---|
| Thermal Power (COP/SCOP, A7/W35) | 9,00 / 5,23 / 6,33 |
| Thermal Power (COP/SCOP, A7/W55) | 9,00 / 3,24 / 4,40 |
| Cooling Power (EER/SEER, A35/W7) | - |
| Cooling Power (EER/SEER, A35/W18) | - |
| Energy Class (W35/W55) | A+++ / A+++ |
| Sound Power dB(A) | 52 |
| Dimensions (H×W×W) / Weight (kg) | 1 520×1 200×430 / 163 |
WH-WXG12ME5
| FEATURE | PRICE |
|---|---|
| Thermal Power (COP/SCOP, A7/W35) | 12,00 / 5,06 / 6,20 |
| Thermal Power (COP/SCOP, A7/W55) | 12,00 / 3,23 / 4,40 |
| Cooling Power (EER/SEER, A35/W7) | - |
| Cooling Power (EER/SEER, A35/W18) | - |
| Energy Class (W35/W55) | A+++ / A+++ |
| Sound Power dB(A) | 53 |
| Dimensions (H×W×W) / Weight (kg) | 1 520×1 200×430 / 163 |
WH-WXG09ME8
| FEATURE | PRICE |
|---|---|
| Thermal Power (COP/SCOP, A7/W35) | 9,00 / 5,23 / 6,33 |
| Thermal Power (COP/SCOP, A7/W55) | 9,00 / 3,24 / 4,40 |
| Cooling Power (EER/SEER, A35/W7) | - |
| Cooling Power (EER/SEER, A35/W18) | - |
| Energy Class (W35/W55) | A+++ / A+++ |
| Sound Power dB(A) | 52 |
| Dimensions (H × W × W) / Weight (kg) | 1 520 × 1 200 × 430 / 163 |
WH-WXG12ME8
| FEATURE | PRICE |
|---|---|
| Thermal Power (COP/SCOP, A7/W35) | 12,00 / 5,06 / 6,20 |
| Thermal Power (COP/SCOP, A7/W55) | 12,00 / 3,23 / 4,40 |
| Cooling Power (EER/SEER, A35/W7) | - |
| Cooling Power (EER/SEER, A35/W18) | - |
| Energy Class (W35/W55) | A+++ / A+++ |
| Sound Power dB(A) | 53 |
| Dimensions (H × W × W) / Weight (kg) | 1 520 × 1 200 × 430 / 163 |

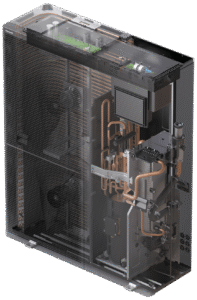

WH-WXG16ME8
| FEATURE | PRICE |
|---|---|
| Thermal Power (COP/SCOP, A7/W35) | 16,00 / 4,89 / 6,08 |
| Thermal Power (COP/SCOP, A7/W55) | 16,00 / 3,20 / 4,45 |
| Cooling Power (EER/SEER, A35/W7) | - |
| Cooling Power (EER/SEER, A35/W18) | - |
| Energy Class (W35/W55) | A+++ / A+++ |
| Sound Power dB(A) | 57 |
| Dimensions (H × W × W) / Weight (kg) | 1 520 × 1 200 × 430 / 165 |
WH-WXG20ME8
| FEATURE | PRICE |
|---|---|
| Thermal Power (COP/SCOP, A7/W35) | 20,00 / 4,80 / 5,37 |
| Thermal Power (COP/SCOP, A7/W55) | 20,00 / 3,18 / 4,07 |
| Cooling Power (EER/SEER, A35/W7) | 20,00 / 3,02 / |
| Cooling Power (EER/SEER, A35/W18) | 20,00 / 4,79 / |
| Energy Class (W35/W55) | A+++ / A+++ |
| Sound Power dB(A) | 56 |
| Dimensions (H × W × W) / Weight (kg) | 1 645 × 1 500 × 460 / 240 |
WH-WXG25ME8
| FEATURE | PRICE |
|---|---|
| Thermal Power (COP/SCOP, A7/W35) | 25,00 / 4,50 / 5,22 |
| Thermal Power (COP/SCOP, A7/W55) | 25,00 / 3,00 / 4,14 |
| Cooling Power (EER/SEER, A35/W7) | 25,00 / 2,86 / |
| Cooling Power (EER/SEER, A35/W18) | 25,00 / 4,47 / |
| Energy Class (W35/W55) | A+++ / A+++ |
| Sound Power dB(A) | 59 |
| Dimensions (H × W × W) / Weight (kg) | 1 645 × 1 500 × 460 / 240 |
WH-WXG30ME8
| FEATURE | PRICE |
|---|---|
| Thermal Power (COP/SCOP, A7/W35) | 30,00 / 4,40 / 4,93 |
| Thermal Power (COP/SCOP, A7/W55) | 30,00 / 3,00 / 4,01 |
| Cooling Power (EER/SEER, A35/W7) | 26,00 / 2,68 / |
| Cooling Power (EER/SEER, A35/W18) | 30,00 / 4,10 / |
| Energy Class (W35/W55) | A+++ / A+++ |
| Sound Power dB(A) | 61 |
| Dimensions (H × W × W) / Weight (kg) | 1 645 × 1 500 × 460 / 240 |

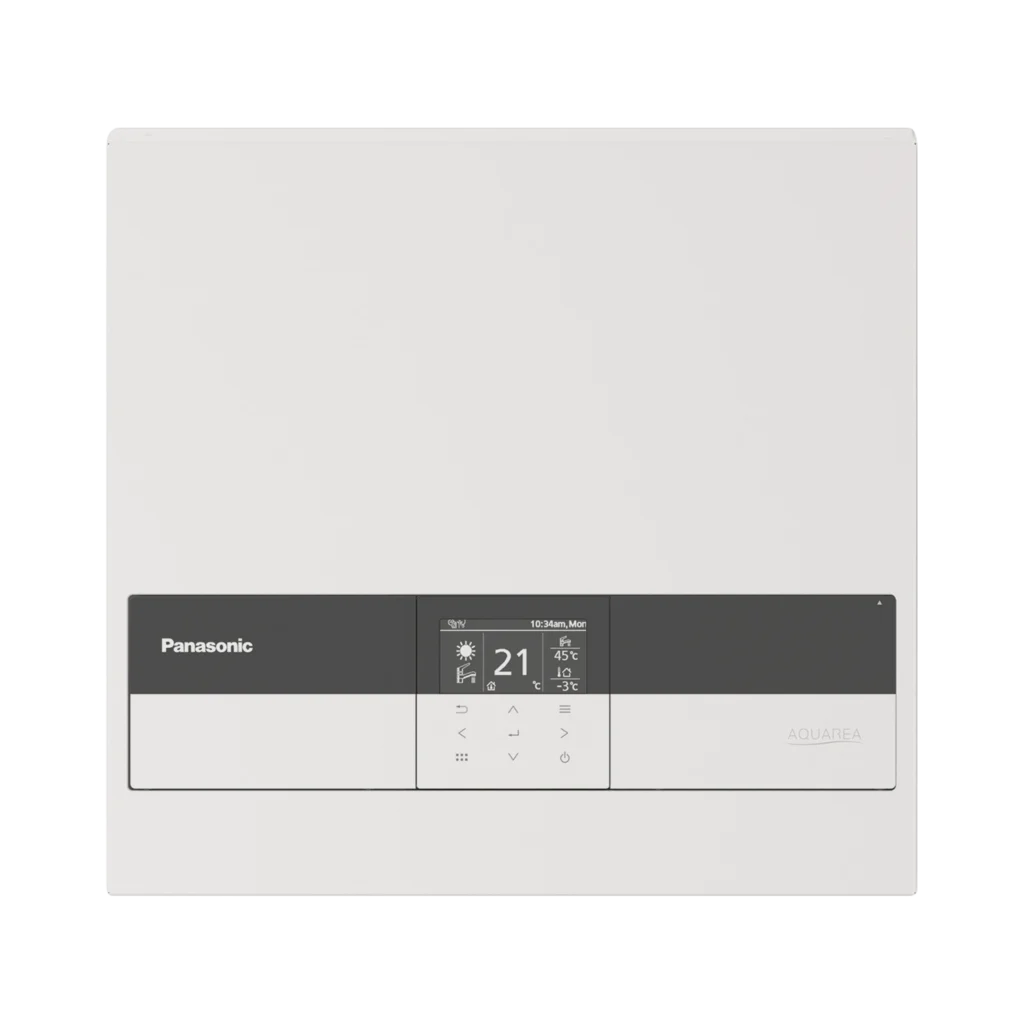

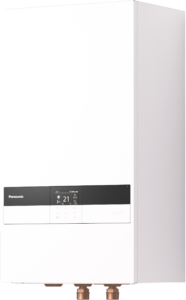

Aquarea T-CAP R290 Split Generation M. Technical characteristics

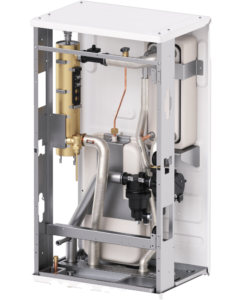

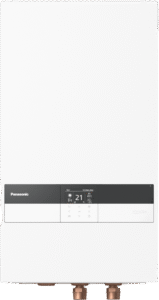

Η Aquarea T-CAP R290 Split Generation M combines an outdoor unit with an indoor hydraulic module and maintains a constant heating power even at very low temperatures.
It offers water temperature up to 75°C and high energy efficiency (up to A+++), ideal for boiler replacement and home renovations.
WH-SDC0916M3E5 / WH-WXG09ME5
| THERMAL POWER / COP / SCOP * (A7/W35) | 9,00 / 5,23 / 6,33 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 9,00 / 3,24 / 4,40 |
| COOLING POWER / EER / SEER * (A35/W7) | 9,00 / 3,61 |
| COOLING POWER / EER / SEER * (A35/W18) | 9,00 / 5,26 |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 52 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 163 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (892 x 500 x 348) / 28 |
WH-SDC0916M3E5 / WH-WXG12ME5
| THERMAL POWER / COP / SCOP * (A7/W35) | 12,00 / 5,06 / 6,20 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 12,00 / 3,23 / 4,40 |
| COOLING POWER / EER / SEER * (A35/W7) | 12,00 / 3,61 |
| COOLING POWER / EER / SEER * (A35/W18) | 12,00 / 5,26 |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 53 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 163 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (892 x 500 x 348) / 28 |
WH-SDC0316M9E8 / WH-WXG09ME8
| THERMAL POWER / COP / SCOP * (A7/W35) | 9,00 / 5,23 / 6,33 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 9,00 / 3,24 / 4,40 |
| COOLING POWER / EER / SEER * (A35/W7) | 9,00 / 3,61 |
| COOLING POWER / EER / SEER * (A35/W18) | 9,00 / 5,26 |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 52 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 163 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (892 x 500 x 348) / 29 |
WH-SDC0316M9E8 / WH-WXG12ME8
| THERMAL POWER / COP / SCOP * (A7/W35) | 12,00 / 5,06 / 6,20 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 12,00 / 3,23 / 4,40 |
| COOLING POWER / EER / SEER * (A35/W7) | 12,00 / 3,61 |
| COOLING POWER / EER / SEER * (A35/W18) | 12,00 / 5,26 |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 53 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 163 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (892 x 500 x 348) / 29 |
WH-SDC0316M9E8 / WH-WXG16ME8
| THERMAL POWER / COP / SCOP * (A7/W35) | 16,00 / 4,89 / 6,08 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 16,00 / 3,20 / 4,45 |
| COOLING POWER / EER / SEER * (A35/W7) | 16,00 / 3,61 |
| COOLING POWER / EER / SEER * (A35/W18) | 16,00 / 5,26 |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 57 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 165 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (892 x 500 x 348) / 29 |

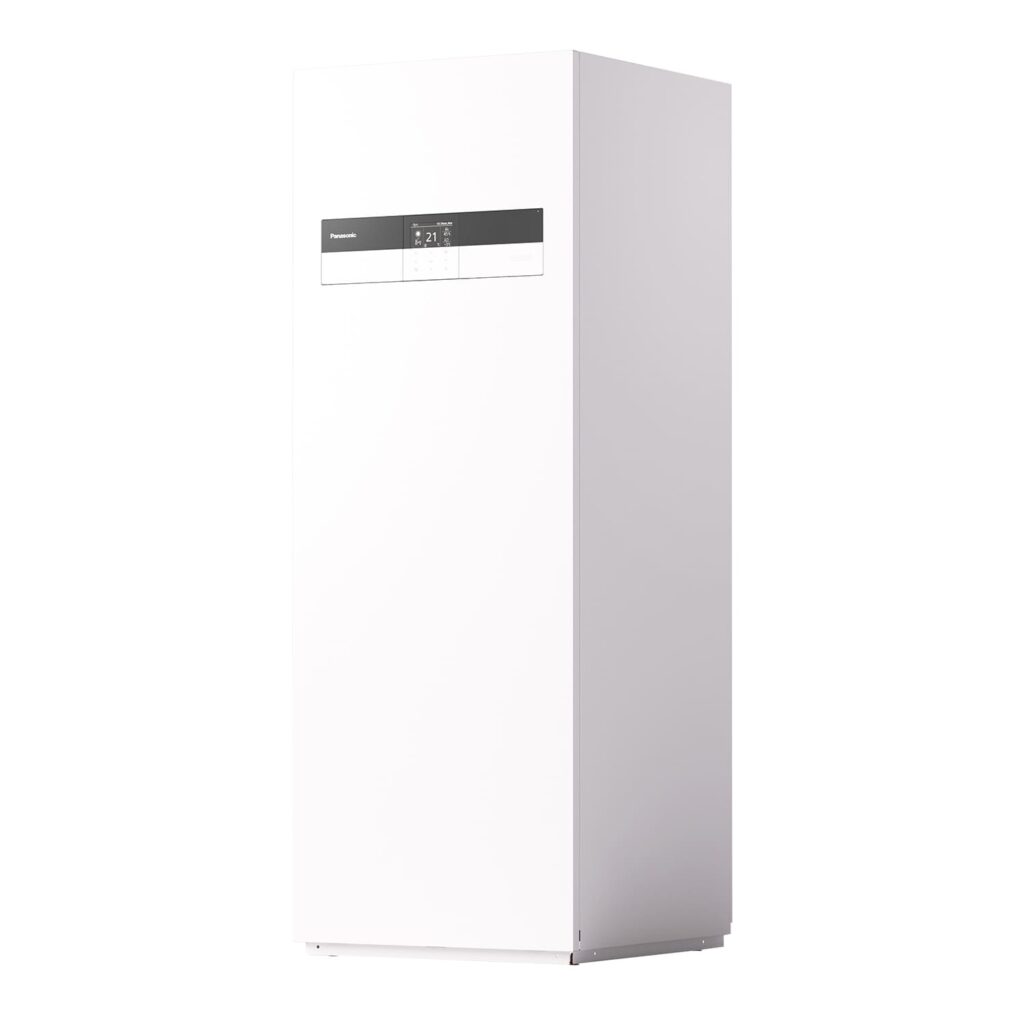

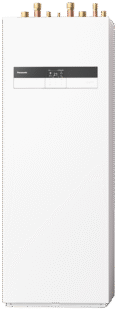

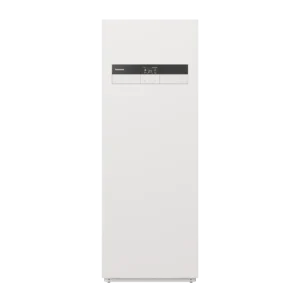

Aquarea T-CAP R290 All In One Generation M. Technical characteristics

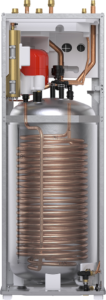

Η Aquarea T-CAP R290 All-in-One Generation M incorporates a compact indoor unit with a DHW tank and hydraulic module, reducing space and installation time.
It maintains stable power at very low temperatures and provides water up to 75°C with high energy efficiency ideal for boiler replacement and renovations.
WH-ADC0916M3E51 / WH-WXG09ME5
| THERMAL POWER / COP / SCOP * (A7/W35) | 9,00 / 5,23 / 6,33 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 9,00 / 3,24 / 4,40 |
| COOLING POWER / EER / SEER * (A35/W7) | - |
| COOLING POWER / EER / SEER * (A35/W18) | - |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 52 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 163 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 293 x 599 x 602) / 74 |
| HOT TANK (lt) | 120 |
WH-ADC0916M3E51 / WH-WXG12ME5
| THERMAL POWER / COP / SCOP * (A7/W35) | 12,00 / 5,06 / 6,20 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 12,00 / 3,23 / 4,40 |
| COOLING POWER / EER / SEER * (A35/W7) | - |
| COOLING POWER / EER / SEER * (A35/W18) | - |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 53 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 163 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 293 x 599 x 602) / 74 |
| HOT TANK (lt) | 120 |
WH-ADC0916M3E52 / WH-WXG09ME5
| THERMAL POWER / COP / SCOP * (A7/W35) | 9,00 / 5,23 / 6,33 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 9,00 / 3,24 / 4,40 |
| COOLING POWER / EER / SEER * (A35/W7) | - |
| COOLING POWER / EER / SEER * (A35/W18) | - |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 52 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 163 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 642 x 599 x 602) / 89 |
| HOT TANK (lt) | 185 |
WH-ADC0916M3E52 / WH-WXG12ME5
| THERMAL POWER / COP / SCOP * (A7/W35) | 12,00 / 5,06 / 6,20 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 12,00 / 3,23 / 4,40 |
| COOLING POWER / EER / SEER * (A35/W7) | - |
| COOLING POWER / EER / SEER * (A35/W18) | - |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 53 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 163 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 642 x 599 x 602) / 89 |
| HOT TANK (lt) | 185 |
WH-ADC0916M3E53 / WH-WXG09ME5
| THERMAL POWER / COP / SCOP * (A7/W35) | 9,00 / 5,23 / 6,33 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 9,00 / 3,24 / 4,40 |
| COOLING POWER / EER / SEER * (A35/W7) | - |
| COOLING POWER / EER / SEER * (A35/W18) | - |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 52 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 163 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (2 036 x 599 x 602) / 105 |
| HOT TANK (lt) | 260 |
WH-ADC0916M3E53 / WH-WXG12ME5
| THERMAL POWER / COP / SCOP * (A7/W35) | 12,00 / 5,06 / 6,20 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 12,00 / 3,23 / 4,40 |
| COOLING POWER / EER / SEER * (A35/W7) | - |
| COOLING POWER / EER / SEER * (A35/W18) | - |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 53 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 163 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (2 036 x 599 x 602) / 105 |
| HOT TANK (lt) | 260 |
WH-ADC0916M9E81 / WH-WXG09ME8
| THERMAL POWER / COP / SCOP * (A7/W35) | 9,00 / 5,23 / 6,33 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 9,00 / 3,24 / 4,40 |
| COOLING POWER / EER / SEER * (A35/W7) | - |
| COOLING POWER / EER / SEER * (A35/W18) | - |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 52 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 163 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 293 x 599 x 602) / 74 |
| HOT TANK (lt) | 120 |
WH-ADC0916M9E81 / WH-WXG12ME8
| THERMAL POWER / COP / SCOP * (A7/W35) | 12,00 / 5,06 / 6,20 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 12,00 / 3,23 / 4,40 |
| COOLING POWER / EER / SEER * (A35/W7) | - |
| COOLING POWER / EER / SEER * (A35/W18) | - |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 53 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 163 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 293 x 599 x 602) / 74 |
| HOT TANK (lt) | 120 |
WH-ADC0916M9E81 / WH-WXG16ME8
| THERMAL POWER / COP / SCOP * (A7/W35) | 16,00 / 4,89 / 6,08 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 16,00 / 3,20 / 4,45 |
| COOLING POWER / EER / SEER * (A35/W7) | - |
| COOLING POWER / EER / SEER * (A35/W18) | - |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 57 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 165 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 293 x 599 x 602) / 74 |
| HOT TANK (lt) | 120 |
WH-ADC0316M9E82 / WH-WXG09ME8
| THERMAL POWER / COP / SCOP * (A7/W35) | 9,00 / 5,23 / 6,33 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 9,00 / 3,24 / 4,40 |
| COOLING POWER / EER / SEER * (A35/W7) | - |
| COOLING POWER / EER / SEER * (A35/W18) | - |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 52 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 163 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 642 x 599 x 602) / 89 |
| HOT TANK (lt) | 185 |
WH-ADC0316M9E82 / WH-WXG12ME8
| THERMAL POWER / COP / SCOP * (A7/W35) | 12,00 / 5,06 / 6,20 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 12,00 / 3,23 / 4,40 |
| COOLING POWER / EER / SEER * (A35/W7) | - |
| COOLING POWER / EER / SEER * (A35/W18) | - |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 53 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 163 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 642 x 599 x 602) / 89 |
| HOT TANK (lt) | 185 |
WH-ADC0316M9E82 / WH-WXG16ME8
| THERMAL POWER / COP / SCOP * (A7/W35) | 16,00 / 4,89 / 6,08 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 16,00 / 3,20 / 4,45 |
| COOLING POWER / EER / SEER * (A35/W7) | - |
| COOLING POWER / EER / SEER * (A35/W18) | - |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 57 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 165 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 642 x 599 x 602) / 89 |
| HOT TANK (lt) | 185 |
WH-ADC0316M9E83 / WH-WXG09ME8
| THERMAL POWER / COP / SCOP * (A7/W35) | 9,00 / 5,23 / 6,33 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 9,00 / 3,24 / 4,40 |
| COOLING POWER / EER / SEER * (A35/W7) | - |
| COOLING POWER / EER / SEER * (A35/W18) | - |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 52 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 163 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (2 036 x 599 x 602) / 105 |
| HOT TANK (lt) | 260 |
WH-ADC0316M9E83 / WH-WXG12ME8
| THERMAL POWER / COP / SCOP * (A7/W35) | 12,00 / 5,06 / 6,20 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 12,00 / 3,23 / 4,40 |
| COOLING POWER / EER / SEER * (A35/W7) | - |
| COOLING POWER / EER / SEER * (A35/W18) | - |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 53 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 163 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (2 036 x 599 x 602) / 105 |
| HOT TANK (lt) | 260 |
WH-ADC0316M9E83 / WH-WXG16ME8
| THERMAL POWER / COP / SCOP * (A7/W35) | 16,00 / 4,89 / 6,08 |
|---|---|
| THERMAL POWER / COP / SCOP * (A7/W55) | 16,00 / 3,20 / 4,45 |
| COOLING POWER / EER / SEER * (A35/W7) | - |
| COOLING POWER / EER / SEER * (A35/W18) | - |
| ENERGY CLASS (W35/W55) | A+++ / A+++ |
| SOUND VOLUME dB (A) | 57 |
| EXTERIOR DIMENSIONS (H x W x W) / WEIGHT | (1 520 x 1 200 x 430) / 165 |
| INTERIOR DIMENSIONS (H x W x W) / WEIGHT | (2 036 x 599 x 602) / 105 |
| HOT TANK (lt) | 260 |
Advantages of Panasonic Aquarea Generation M
- Compatibility with underfloor, fan coils and radiators
- CHP production without electrical resistance
- High flow temperature for use with existing radiators
- Silent operation (up to 53 dB(A))
- Modbus connection and advanced control via Smart Cloud
- Natural refrigerant R290
- hydraulic connection of the outdoor and indoor unit
Installation & Control
- 100% hydraulic connection (without using refrigerant inside the building)
- External unit also works autonomously with remote control

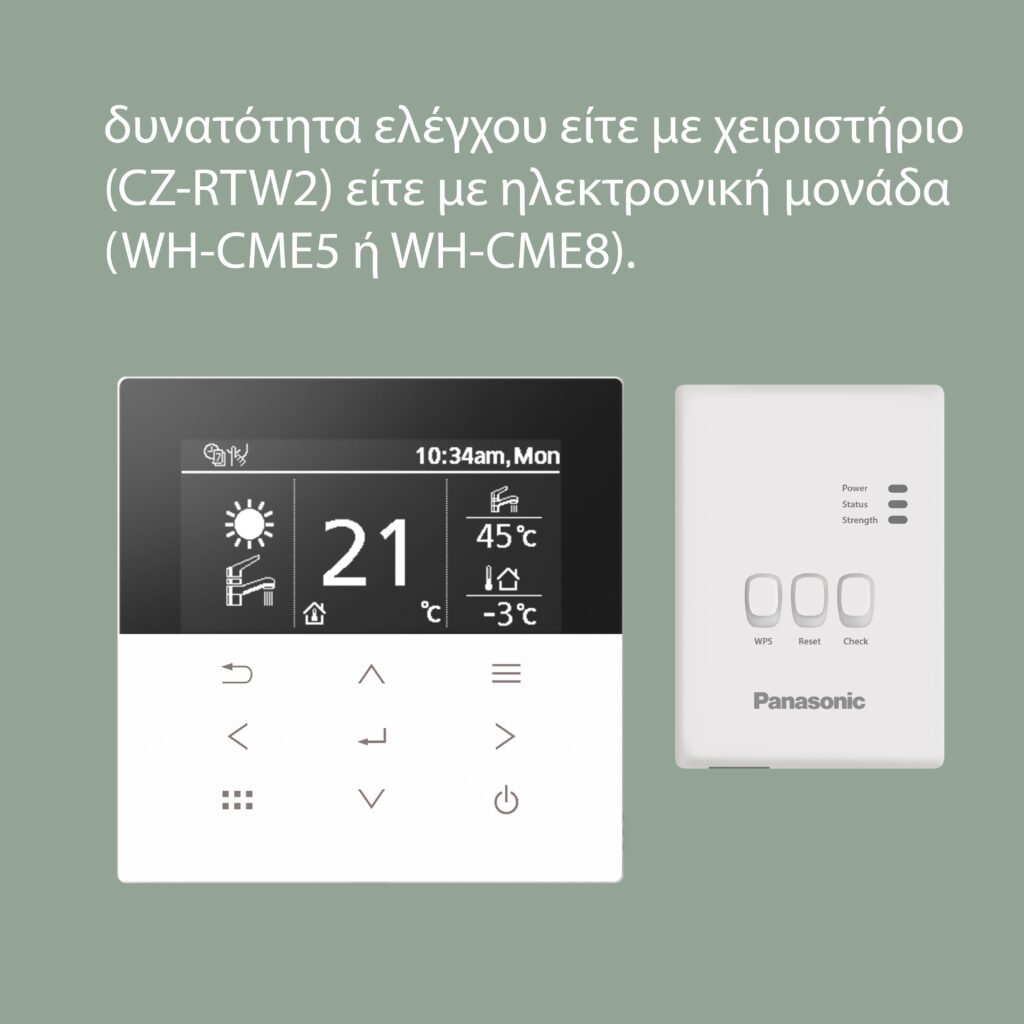

- Compatibility with Control Box WH-CME5 / CME8 / CME8L
Aquarea Smart Cloud & IFTTT
Aquarea connects to the cloud via CZ-TAW1B and allows:
- Programming & Statistics
- Malfunction notifications
- Interface with automation systems via IFTTT (If This Then That)
- Connect to voice assistants (Google/Alexa)
Ideal for
- Renovations of old systems
- Applications without the use of a boiler
- Domestic and small business units
- Projects with high energy efficiency requirements (nZEB)
❓ Frequently Asked Questions (FAQ)
✅ Yes, provides up to 75°C output temperature, meeting the needs of existing radiators.
✅ The end user does not. The installer must be certified for physical refrigerants according to F-GAS.
✅ Yes, maintains power at -20°C without assistance.
✅ Up to 53 dB(A), ideal for residential areas.
✅ Up to 60% savings in well-insulated buildings, with high performance SCOP.
✅ Through Panasonic Comfort Cloud and Service Cloud applications.
✅ Yes, it is fully compatible with net metering and PV energy use.
